#include <stdint.h>
#include <stdbool.h>
#include <platform_mutex.h>

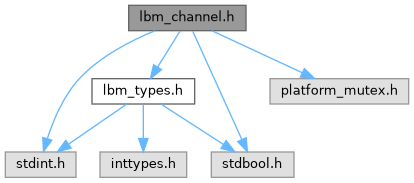

Include dependency graph for lbm_channel.h:

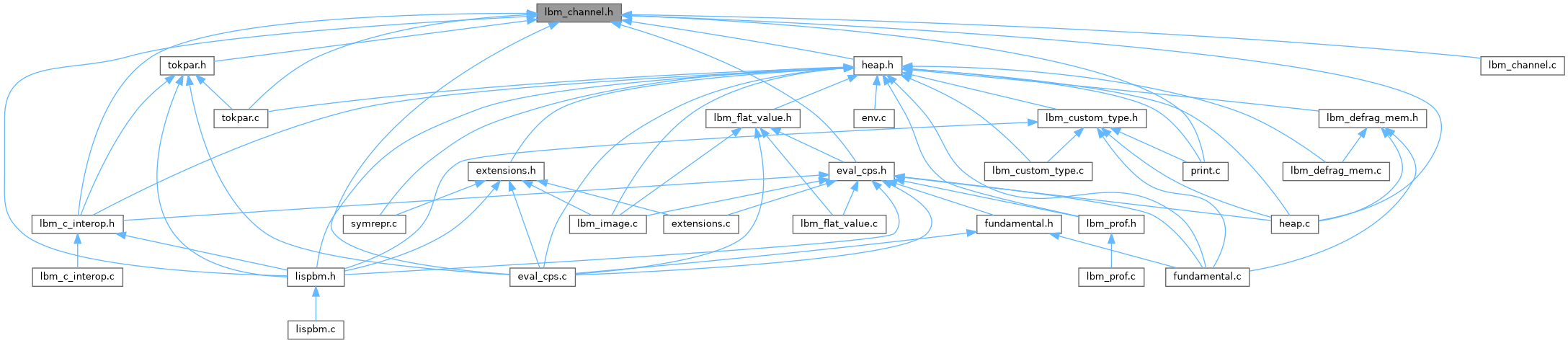

This graph shows which files directly or indirectly include this file:

Data Structures
struct	lbm_buffered_channel_state_t

struct	lbm_string_channel_state_t

struct	lbm_char_channel_s

Macros
#define	TOKENIZER_BUFFER_SIZE 257

#define	CHANNEL_SUCCESS 1

#define	CHANNEL_MORE 2

#define	CHANNEL_END 3

#define	CHANNEL_FULL 4

#define	CHANNEL_READER_CLOSED 1000

Typedefs
typedef struct lbm_char_channel_s	lbm_char_channel_t

Functions
bool	lbm_channel_more (lbm_char_channel_t *chan)

int	lbm_channel_peek (lbm_char_channel_t chan, unsigned int n, char res)

bool	lbm_channel_read (lbm_char_channel_t chan, char res)

bool	lbm_channel_drop (lbm_char_channel_t *chan, unsigned int n)

bool	lbm_channel_comment (lbm_char_channel_t *chan)

void	lbm_channel_set_comment (lbm_char_channel_t *chan, bool comment)

void	lbm_channel_reader_close (lbm_char_channel_t *chan)

bool	lbm_channel_reader_is_closed (lbm_char_channel_t *chan)

bool	lbm_channel_is_empty (lbm_char_channel_t *chan)

bool	lbm_channel_is_full (lbm_char_channel_t *chan)

int	lbm_channel_write (lbm_char_channel_t *chan, char c)

void	lbm_channel_writer_close (lbm_char_channel_t *chan)

unsigned int	lbm_channel_row (lbm_char_channel_t *chan)

unsigned int	lbm_channel_column (lbm_char_channel_t *chan)

bool	lbm_channel_may_block (lbm_char_channel_t *chan)

void	lbm_create_string_char_channel (lbm_string_channel_state_t st, lbm_char_channel_t chan, char *str)

void	lbm_create_string_char_channel_size (lbm_string_channel_state_t st, lbm_char_channel_t chan, char *str, unsigned int size)

void	lbm_create_buffered_char_channel (lbm_buffered_channel_state_t st, lbm_char_channel_t chan)

Macro Definition Documentation

◆ CHANNEL_END

#define CHANNEL_END 3

◆ CHANNEL_FULL

#define CHANNEL_FULL 4

◆ CHANNEL_MORE

#define CHANNEL_MORE 2

◆ CHANNEL_READER_CLOSED

#define CHANNEL_READER_CLOSED 1000

◆ CHANNEL_SUCCESS

#define CHANNEL_SUCCESS 1

◆ TOKENIZER_BUFFER_SIZE

#define TOKENIZER_BUFFER_SIZE 257

Typedef Documentation

◆ lbm_char_channel_t

typedef struct lbm_char_channel_s lbm_char_channel_t

Struct describing the interface to a character channel.

Function Documentation

◆ lbm_channel_column()

unsigned int lbm_channel_column ( lbm_char_channel_t * chan )

Obtain current column from a channel.

Parameters

chan	The channel to query.

◆ lbm_channel_comment()

bool lbm_channel_comment ( lbm_char_channel_t * chan )

Comment mode. Check if a channel is currently in comment mode.

Parameters

chan	The channel.

Returns: true if the channel is in comment mode, false otherwise.

◆ lbm_channel_drop()

bool lbm_channel_drop	(	lbm_char_channel_t *	chan,
		unsigned int	n
	)

Drop n characters from a channel.

Parameters

chan	The channel to drop characters from.
n	The number of characters to drop.

Returns: true on successfully dropping n characters, false otherwise.

◆ lbm_channel_is_empty()

bool lbm_channel_is_empty ( lbm_char_channel_t * chan )

Check if a channel is empty. Data cannot be read from an empty channel.

Parameters

chan	Channel to query.

Returns: True if empty, false otherwise.

◆ lbm_channel_is_full()

bool lbm_channel_is_full ( lbm_char_channel_t * chan )

Check if a channel is full. Data cannot be written into a full channel.

Parameters

chan	Channel to query.

Returns: True if channel is full, false otherwise.

◆ lbm_channel_may_block()

bool lbm_channel_may_block ( lbm_char_channel_t * chan )

query if a channel has a potentially blocking interface. Buffered channels do, string backed channels don't.

◆ lbm_channel_more()

bool lbm_channel_more ( lbm_char_channel_t * chan )

Check if there are more characters comming on a character channel. This returns false if the sender has closed the send side of the channel.

Parameters

chan	The channel.

Returns: True if sender end is still open false if closed.

◆ lbm_channel_peek()

int lbm_channel_peek	(	lbm_char_channel_t *	chan,
		unsigned int	n,
		char *	res
	)

Peek into a character channel.

Parameters

chan	The channel to peek into.
n	The position to peek at.
res	Pointer to a character that will hold the result.

Returns

CHANNEL_SUCCESS: successfully peeked.
CHANNEL_MORE: The data you try to peek at has not yet arrived into the channel.
CHANNEL_END: The sender side is closed and you are peeking outside of valid data.

◆ lbm_channel_read()

bool lbm_channel_read	(	lbm_char_channel_t *	chan,
		char *	res
	)

Read a character from the head of the channel.

Parameters

chan	The channel to read from.
res	The resulting character is stored here.

Returns: true on success, otherwise false.

◆ lbm_channel_reader_close()

void lbm_channel_reader_close ( lbm_char_channel_t * chan )

Close a channel reader side.

Parameters

chan	Channel to close the reader side of.

◆ lbm_channel_reader_is_closed()

bool lbm_channel_reader_is_closed ( lbm_char_channel_t * chan )

Check if the reader side of channel is closed.

Parameters

chan	Channel to query.

Returns: True if closed, false otherwise.

◆ lbm_channel_row()

unsigned int lbm_channel_row ( lbm_char_channel_t * chan )

Obtain current row number from a channel.

Parameters

chan	The channel to query.

Returns: The current row as seen by the calls to "read".

◆ lbm_channel_set_comment()

void lbm_channel_set_comment	(	lbm_char_channel_t *	chan,
		bool	comment
	)

Enter into or exit from comment mode.

Parameters

chan	Channel to change mode of.
comment	True to enter into comment mode and false to exit.

◆ lbm_channel_write()

int lbm_channel_write	(	lbm_char_channel_t *	chan,
		char	c
	)

Write a character onto the end of a channel.

Parameters

chan	Channel to write to.
c	Character to place onto the channel.

Returns

CHANNEL_SUCCESS: Successfully wrote.
CHANNEL_READER_CLOSED: The reader end is closed, you should abort writing.
CHANNEL_FULL: The channel is full and cannot accept the character. Try again later.

◆ lbm_channel_writer_close()

void lbm_channel_writer_close ( lbm_char_channel_t * chan )

Close the writer side of a channel. \ param chan The channel to close the writer side of.

◆ lbm_create_buffered_char_channel()

void lbm_create_buffered_char_channel	(	lbm_buffered_channel_state_t *	st,
		lbm_char_channel_t *	chan
	)

Create a buffered channel that can be read from and written to.

Parameters

st	Pointer to lbm_buffered_channel_state_t.
chan	Pointer to lbm_char_channel_t.

◆ lbm_create_string_char_channel()

void lbm_create_string_char_channel	(	lbm_string_channel_state_t *	st,
		lbm_char_channel_t *	chan,
		char *	str
	)

Create a channel from a string. This channel can be read from but not written to.

Parameters

st	Pointer to lbm_string_channel_state.
chan	Pointer to lbm_char_channel_t.
str	The string to base the channel contents upon.

◆ lbm_create_string_char_channel_size()

void lbm_create_string_char_channel_size	(	lbm_string_channel_state_t *	st,
		lbm_char_channel_t *	chan,
		char *	str,
		unsigned int	size
	)
