lbm_image.h File Reference

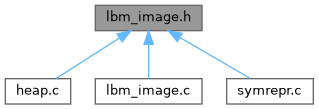

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef bool(*	lbm_image_write_fun) (uint32_t data, int32_t index, bool const_heap)

Functions
uint32_t *	lbm_image_get_image (void)
int32_t	lbm_image_get_write_index (void)
uint32_t	lbm_image_get_size (void)
bool	lbm_image_has_extensions (void)
bool	lbm_image_save_global_env (void)
bool	lbm_image_save_extensions (void)
bool	lbm_image_save_constant_heap_ix (void)
lbm_uint *	lbm_image_add_symbol (char *name, lbm_uint id, lbm_uint symlist)
lbm_uint *	lbm_image_add_and_link_symbol (char *name, lbm_uint id, lbm_uint symlist, lbm_uint *link)
void	lbm_image_init (uint32_t *image_mem_addr, uint32_t image_size, lbm_image_write_fun image_write_fun)
void	lbm_image_create (char *version_str)
bool	lbm_image_exists (void)
bool	lbm_image_boot (void)
char *	lbm_image_get_version (void)

Typedef Documentation

lbm_image_write_fun

typedef bool(* lbm_image_write_fun) (uint32_t data, int32_t index, bool const_heap)

lbm_image_write_fun function ptr.

Parameters

data	32bit word to write.
index	Position to write to.
const_heap	True if writing to const heap (bottom of image) and false otherwise.

Function Documentation

lbm_image_add_and_link_symbol()

lbm_uint * lbm_image_add_and_link_symbol	(	char *	name,
		lbm_uint	id,
		lbm_uint	symlist,
		lbm_uint *	link
	)

Add a symbol to the image and "link" it to a C address (variable).

Parameters

name	Symbol name.
id	Symbol id.
symlist	Ptr to rest of symbol list.
link	ptr where to store the symbol ID on image-boot.

Returns

pointer to head of symbol list.

lbm_image_add_symbol()

lbm_uint * lbm_image_add_symbol	(	char *	name,
		lbm_uint	id,
		lbm_uint	symlist
	)

Add a symbol to the image. Symbols added to the image are restored upon image-boot.

Parameters

name	Symbol name.
id	Symbol id.
symlist	Ptr to rest of symbol list.

Returns

pointer to head of symbol list.

lbm_image_boot()

bool lbm_image_boot

(

void

)

Boot an existing image. Restores the datastructures stored in the image.

Returns

true on success, false otherwise.

lbm_image_create()

void lbm_image_create

(

char *

version_str

)

Create an image at the address and of the size given to lbm_image_init.

Parameters

version_str

a zero terminated version string or NULL.

lbm_image_exists()

bool lbm_image_exists

(

void

)

An image exists the memory area given to lbm_image_init to store the image in contains the IMAGE_INITIALIZED field at the start (top) of the image area.

Returns

true if image exists, false otherwise.

lbm_image_get_image()

uint32_t * lbm_image_get_image

(

void

)

lbm_image_get_image provides a pointer to the starting point of an image. The starting point of an image is the lowest address, even though writing to an image is done top-down.

Returns

pointer to image.

lbm_image_get_size()

uint32_t lbm_image_get_size

(

void

)

Get the size of an image.

Returns

The size of the image in 32bit words

lbm_image_get_version()

char * lbm_image_get_version

(

void

)

Get the version string that was stored in the image. If no version string was stored in the image, the result is NULL.

Returns

pointer to version string or NULL.

lbm_image_get_write_index()

int32_t lbm_image_get_write_index

(

void

)

Images are written from the top towards the bottom. The write_index is the next free location of (32bit) word size in the image.

Returns

write index.

lbm_image_has_extensions()

bool lbm_image_has_extensions

(

void

)

Does the image have a stored extension table?

Returns

true if image contains extension table, false otherwise.

lbm_image_init()

void lbm_image_init	(	uint32_t *	image_mem_addr,
		uint32_t	image_size,
		lbm_image_write_fun	image_write_fun
	)

lbm_image_save_constant_heap_ix()

bool lbm_image_save_constant_heap_ix

(

void

)

Save the current constant_heap index into the image for recovery upon restart.

Returns

true on success otherwise false.

lbm_image_save_extensions()

bool lbm_image_save_extensions

(

void

)

Save the extension table to the image.

Returns

true on success otherwise false.

lbm_image_save_global_env()

bool lbm_image_save_global_env

(

void

)

Save the global environment to the image.

Returns

true on success otherwise false.
