#include <string.h>
#include <stdarg.h>
#include "lbm_types.h"
#include "symrepr.h"
#include "stack.h"
#include "lbm_memory.h"
#include "lbm_defines.h"
#include "lbm_channel.h"

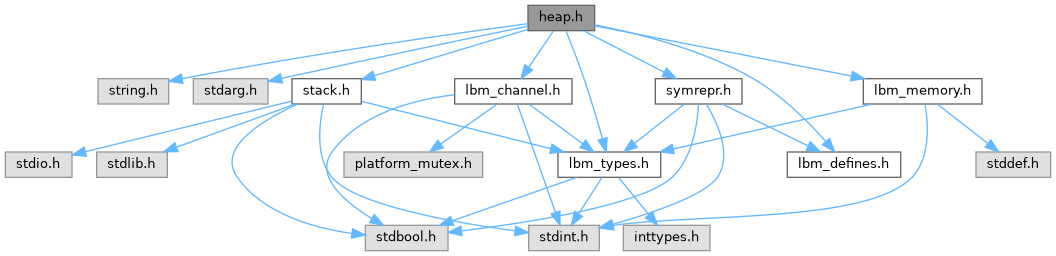

Include dependency graph for heap.h:

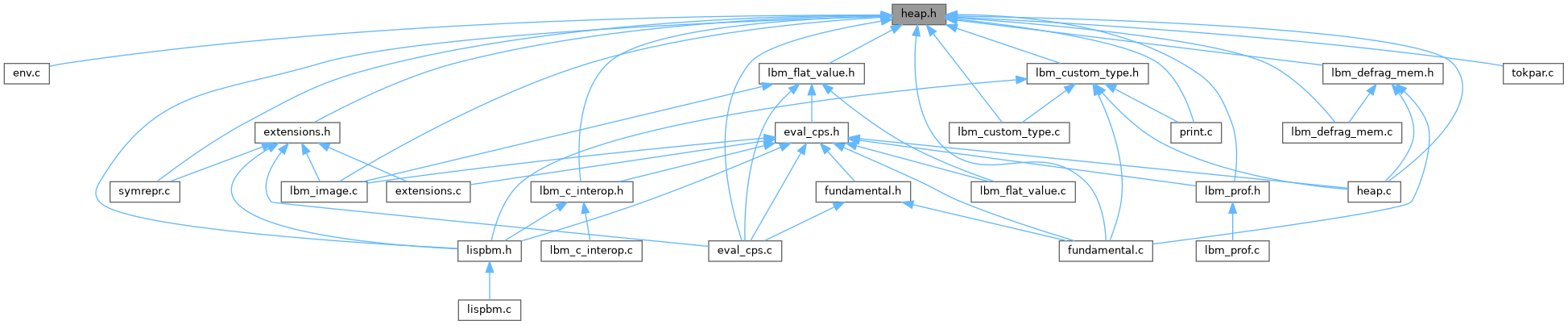

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	lbm_cons_t

struct	lbm_heap_state_t

struct	lbm_const_heap_t

struct	lbm_array_header_t

struct	lbm_array_header_extended_t

Macros
#define	ERROR_SYMBOL_MASK 0xFFFFFFF0

Typedefs
typedef bool(*	const_heap_write_fun) (lbm_uint w, lbm_uint ix)

Enumerations
enum	lbm_flash_status { LBM_FLASH_WRITE_OK , LBM_FLASH_FULL , LBM_FLASH_WRITE_ERROR }

Functions
void	lbm_gc_lock (void)

void	lbm_gc_unlock (void)

int	lbm_heap_init (lbm_cons_t *addr, lbm_uint num_cells, lbm_uint gc_stack_size)

void	lbm_heap_new_gc_time (lbm_uint dur)

void	lbm_heap_new_freelist_length (void)

static lbm_uint	lbm_heap_num_free (void)

lbm_uint	lbm_heap_num_allocated (void)

lbm_uint	lbm_heap_size (void)

lbm_uint	lbm_heap_size_bytes (void)

lbm_value	lbm_heap_allocate_cell (lbm_type ptr_type, lbm_value car, lbm_value cdr)

lbm_value	lbm_heap_allocate_list (lbm_uint n)

lbm_value	lbm_heap_allocate_list_init_va (unsigned int n, va_list valist)

lbm_value	lbm_heap_allocate_list_init (unsigned int n,...)

char *	lbm_dec_str (lbm_value val)

lbm_array_header_t *	lbm_dec_array_r (lbm_value val)

lbm_array_header_t *	lbm_dec_array_rw (lbm_value val)

lbm_array_header_t *	lbm_dec_lisp_array_r (lbm_value val)

lbm_array_header_t *	lbm_dec_lisp_array_rw (lbm_value val)

lbm_char_channel_t *	lbm_dec_channel (lbm_value val)

lbm_uint	lbm_dec_custom (lbm_value val)

uint8_t	lbm_dec_as_char (lbm_value a)

uint32_t	lbm_dec_as_u32 (lbm_value val)

int32_t	lbm_dec_as_i32 (lbm_value val)

float	lbm_dec_as_float (lbm_value val)

uint64_t	lbm_dec_as_u64 (lbm_value val)

int64_t	lbm_dec_as_i64 (lbm_value val)

double	lbm_dec_as_double (lbm_value val)

lbm_uint	lbm_dec_as_uint (lbm_value val)

lbm_int	lbm_dec_as_int (lbm_value val)

lbm_uint	lbm_dec_raw (lbm_value v)

lbm_value	lbm_cons (lbm_value car, lbm_value cdr)

lbm_value	lbm_car (lbm_value cons)

lbm_value	lbm_caar (lbm_value c)

lbm_value	lbm_cadr (lbm_value c)

lbm_value	lbm_cdr (lbm_value cons)

lbm_value	lbm_cddr (lbm_value c)

int	lbm_set_car (lbm_value c, lbm_value v)

int	lbm_set_cdr (lbm_value c, lbm_value v)

int	lbm_set_car_and_cdr (lbm_value c, lbm_value car_val, lbm_value cdr_val)

lbm_uint	lbm_list_length (lbm_value c)

unsigned int	lbm_list_length_pred (lbm_value c, bool pres, bool(pred)(lbm_value))

lbm_value	lbm_list_reverse (lbm_value list)

lbm_value	lbm_list_destructive_reverse (lbm_value list)

lbm_value	lbm_list_copy (int *m, lbm_value list)

lbm_value	lbm_list_append (lbm_value list1, lbm_value list2)

lbm_value	lbm_list_drop (unsigned int n, lbm_value ls)

lbm_value	lbm_index_list (lbm_value l, int32_t n)

void	lbm_get_heap_state (lbm_heap_state_t *)

lbm_uint	lbm_get_gc_stack_max (void)

lbm_uint	lbm_get_gc_stack_size (void)

void	lbm_gc_state_inc (void)

void	lbm_nil_freelist (void)

void	lbm_gc_mark_env (lbm_value)

void	lbm_gc_mark_phase (lbm_value root)

void	lbm_gc_mark_aux (lbm_uint *data, lbm_uint n)

void	lbm_gc_mark_roots (lbm_uint *roots, lbm_uint num_roots)

int	lbm_gc_sweep_phase (void)

int	lbm_heap_allocate_array (lbm_value *res, lbm_uint size)

int	lbm_heap_allocate_lisp_array (lbm_value *res, lbm_uint size)

int	lbm_lift_array (lbm_value value, char data, lbm_uint num_elt)

lbm_int	lbm_heap_array_get_size (lbm_value arr)

const uint8_t *	lbm_heap_array_get_data_ro (lbm_value arr)

uint8_t *	lbm_heap_array_get_data_rw (lbm_value arr)

int	lbm_heap_explicit_free_array (lbm_value arr)

lbm_uint	lbm_size_of (lbm_type t)

int	lbm_const_heap_init (const_heap_write_fun w_fun, lbm_const_heap_t heap, lbm_uint addr)

lbm_flash_status	lbm_allocate_const_cell (lbm_value *res)

lbm_flash_status	lbm_write_const_raw (lbm_uint data, lbm_uint n, lbm_uint res)

lbm_flash_status	lbm_allocate_const_raw (lbm_uint nwords, lbm_uint *res)

lbm_flash_status	write_const_cdr (lbm_value cell, lbm_value val)

lbm_flash_status	write_const_car (lbm_value cell, lbm_value val)

lbm_flash_status	lbm_const_write (lbm_uint *tgt, lbm_uint val)

lbm_uint	lbm_flash_memory_usage (void)

static lbm_type	lbm_type_of (lbm_value x)

static lbm_type	lbm_type_of_functional (lbm_value x)

static lbm_value	lbm_enc_cons_ptr (lbm_uint x)

static lbm_uint	lbm_dec_ptr (lbm_value p)

static lbm_uint	lbm_dec_cons_cell_ptr (lbm_value p)

static lbm_cons_t *	lbm_dec_heap (lbm_value p)

static lbm_value	lbm_set_ptr_type (lbm_value p, lbm_type t)

static lbm_value	lbm_enc_sym (lbm_uint s)

static lbm_value	lbm_enc_i (lbm_int x)

static lbm_value	lbm_enc_u (lbm_uint x)

lbm_value	lbm_enc_i32 (int32_t x)

lbm_value	lbm_enc_u32 (uint32_t x)

lbm_value	lbm_enc_float (float x)

lbm_value	lbm_enc_i64 (int64_t x)

lbm_value	lbm_enc_u64 (uint64_t x)

lbm_value	lbm_enc_double (double x)

static lbm_value	lbm_enc_char (uint8_t x)

static lbm_int	lbm_dec_i (lbm_value x)

static lbm_uint	lbm_dec_u (lbm_value x)

static uint8_t	lbm_dec_char (lbm_value x)

static lbm_uint	lbm_dec_sym (lbm_value x)

float	lbm_dec_float (lbm_value x)

double	lbm_dec_double (lbm_value x)

static uint32_t	lbm_dec_u32 (lbm_value x)

uint64_t	lbm_dec_u64 (lbm_value x)

static int32_t	lbm_dec_i32 (lbm_value x)

int64_t	lbm_dec_i64 (lbm_value x)

static bool	lbm_is_ptr (lbm_value x)

static bool	lbm_is_constant (lbm_value x)

static bool	lbm_is_cons_rw (lbm_value x)

static bool	lbm_is_cons (lbm_value x)

static bool	lbm_is_symbol_nil (lbm_value exp)

static bool	lbm_is_number (lbm_value x)

static bool	lbm_heap_array_valid (lbm_value arr)

static bool	lbm_is_array_r (lbm_value x)

static bool	lbm_is_array_rw (lbm_value x)

static bool	lbm_is_lisp_array_r (lbm_value x)

static bool	lbm_is_lisp_array_rw (lbm_value x)

static bool	lbm_is_channel (lbm_value x)

static bool	lbm_is_char (lbm_value x)

static bool	lbm_is_special (lbm_value symrep)

static bool	lbm_is_closure (lbm_value exp)

static bool	lbm_is_continuation (lbm_value exp)

static bool	lbm_is_macro (lbm_value exp)

static bool	lbm_is_match_binder (lbm_value exp)

static bool	lbm_is_comma_qualified_symbol (lbm_value exp)

static bool	lbm_is_symbol (lbm_value exp)

static bool	lbm_is_symbol_true (lbm_value exp)

static bool	lbm_is_symbol_eval (lbm_value exp)

static bool	lbm_is_symbol_merror (lbm_value exp)

static bool	lbm_is_list (lbm_value x)

static bool	lbm_is_list_rw (lbm_value x)

static bool	lbm_is_quoted_list (lbm_value x)

static bool	lbm_is_error (lbm_value v)

static lbm_cons_t *	lbm_ref_cell (lbm_value addr)

Variables
lbm_heap_state_t	lbm_heap_state

lbm_cons_t *	lbm_heaps [2]

Macro Definition Documentation

◆ ERROR_SYMBOL_MASK

#define ERROR_SYMBOL_MASK 0xFFFFFFF0

Typedef Documentation

◆ const_heap_write_fun

typedef bool(* const_heap_write_fun) (lbm_uint w, lbm_uint ix)

Enumeration Type Documentation

◆ lbm_flash_status

enum lbm_flash_status

Enumerator
LBM_FLASH_WRITE_OK
LBM_FLASH_FULL
LBM_FLASH_WRITE_ERROR

Function Documentation

◆ lbm_allocate_const_cell()

lbm_flash_status lbm_allocate_const_cell ( lbm_value * res )

◆ lbm_allocate_const_raw()

lbm_flash_status lbm_allocate_const_raw	(	lbm_uint	nwords,
		lbm_uint *	res
	)

◆ lbm_caar()

lbm_value lbm_caar ( lbm_value c )

Accesses the car field the car field of an lbm_cons_t.

Parameters

cons Value

Returns: The car of car field or nil.

◆ lbm_cadr()

lbm_value lbm_cadr ( lbm_value c )

Accesses the car of the cdr of an cons cell

Parameters

c Value

Returns: the cdr field or type error.

◆ lbm_car()

lbm_value lbm_car ( lbm_value cons )

Accesses the car field of an lbm_cons_t.

Parameters

cons Value

Returns: The car field of the lbm_cons_t if cons is a reference to a heap cell. If cons is nil, the return value is nil. If the value is not cons or nil, the return value is enc_sym(SYM_TERROR) for type error.

◆ lbm_cddr()

lbm_value lbm_cddr ( lbm_value c )

Accesses the cdr of an cdr field of an lbm_cons_t.

Parameters

cons Value

Returns: The cdr of the cdr field of the lbm_cons_t if cons is a reference to a heap cell. If cons is nil, the return value is nil. If the value if not cons or nil, the return value is enc_sym(SYM_TERROR) for type error.

◆ lbm_cdr()

lbm_value lbm_cdr ( lbm_value cons )

Accesses the cdr field of an lbm_cons_t.

Parameters

cons Value

Returns: The cdr field of the lbm_cons_t if cons is a reference to a heap cell. If cons is nil, the return value is nil. If the value if not cons or nil, the return value is enc_sym(SYM_TERROR) for type error.

◆ lbm_cons()

lbm_value lbm_cons	(	lbm_value	car,
		lbm_value	cdr
	)

Allocates an lbm_cons_t cell from the heap and populates it.

Parameters

car	The value to put in the car field of the allocated lbm_cons_t.
cdr	The value to put in the cdr field of the allocated lbm_cons_t.

Returns: A value referencing the lbm_cons_t or enc_sym(SYM_MERROR) if heap is full.

◆ lbm_const_heap_init()

int lbm_const_heap_init	(	const_heap_write_fun	w_fun,
		lbm_const_heap_t *	heap,
		lbm_uint *	addr
	)

◆ lbm_const_write()

lbm_flash_status lbm_const_write	(	lbm_uint *	tgt,
		lbm_uint	val
	)

◆ lbm_dec_array_r()

lbm_array_header_t * lbm_dec_array_r ( lbm_value val )

Decode a readable array, if the argument is not an array the result is NULL

Parameters

val	value to decode.

Returns: array pointer or NULL.

◆ lbm_dec_array_rw()

lbm_array_header_t * lbm_dec_array_rw ( lbm_value val )

Decode an a read/write array, if the argument is not an array the result is NULL

Parameters

val	value to decode.

Returns: array pointer or NULL.

◆ lbm_dec_as_char()

uint8_t lbm_dec_as_char ( lbm_value a )

Decode a numerical value as if it is char

Parameters

val	Value to decode

Returns: The value encoded in val casted to a char. Returns 0 if val does not encode a number.

◆ lbm_dec_as_double()

double lbm_dec_as_double ( lbm_value val )

Decode a numerical value as a float.

Parameters

val	Value to decode.

Returns: The value encoded in val casted to a float. Returns 0 if val does not encode a number.

◆ lbm_dec_as_float()

float lbm_dec_as_float ( lbm_value val )

Decode a numerical value as a float.

Parameters

val	Value to decode.

Returns: The value encoded in val casted to a float. Returns 0 if val does not encode a number.

◆ lbm_dec_as_i32()

int32_t lbm_dec_as_i32 ( lbm_value val )

Decode a numerical value as a signed integer.

Parameters

val	Value to decode

Returns: The value encoded in val casted to a signed int. Returns 0 if val does not encode a number.

◆ lbm_dec_as_i64()

int64_t lbm_dec_as_i64 ( lbm_value val )

Decode a numerical value as a 64bit signed integer.

Parameters

val	Value to decode

Returns: The value encoded in val casted to a signed int. Returns 0 if val does not encode a number.

◆ lbm_dec_as_int()

lbm_int lbm_dec_as_int ( lbm_value val )

Decode a numerical value into the architecture defined signed integer type.

Parameters

val	Value to decode

Returns: The value encoded in val casted to a signed int. Returns 0 if val does not encode a number.

◆ lbm_dec_as_u32()

uint32_t lbm_dec_as_u32 ( lbm_value val )

Decode a numerical value as if it is unsigned

Parameters

val	Value to decode

Returns: The value encoded in val casted to an unsigned int. Returns 0 if val does not encode a number.

◆ lbm_dec_as_u64()

uint64_t lbm_dec_as_u64 ( lbm_value val )

Decode a numerical value as if it is a 64bit unsigned

Parameters

val	Value to decode

Returns: The value encoded in val casted to an unsigned int. Returns 0 if val does not encode a number.

◆ lbm_dec_as_uint()

lbm_uint lbm_dec_as_uint ( lbm_value val )

Decode a numerical value into the architecture defined unsigned integer type.

Parameters

val	Value to decode

Returns: The value encoded in val casted to an unsigned int. Returns 0 if val does not encode a number.

◆ lbm_dec_channel()

lbm_char_channel_t * lbm_dec_channel ( lbm_value val )

Decode an lbm_value representing a char channel into an lbm_char_channel_t pointer.

Parameters

val Value

Returns: A pointer to an lbm_char_channel_t or NULL if the value does not encode a channel.

◆ lbm_dec_char()

static uint8_t lbm_dec_char ( lbm_value x )

inlinestatic

◆ lbm_dec_cons_cell_ptr()

static lbm_uint lbm_dec_cons_cell_ptr ( lbm_value p )

inlinestatic

◆ lbm_dec_custom()

lbm_uint lbm_dec_custom ( lbm_value val )

Decode an lbm_value representing a custom type into a lbm_uint value.

Parameters

val Value.

Returns: The custom type payload.

◆ lbm_dec_double()

double lbm_dec_double ( lbm_value x )

extern

Decode an lbm_value representing a double.

Parameters

x	Value to decode.

Returns: decoded float.

◆ lbm_dec_float()

float lbm_dec_float ( lbm_value x )

extern

Decode an lbm_value representing a float.

Parameters

x	Value to decode.

Returns: decoded float.

◆ lbm_dec_heap()

static lbm_cons_t * lbm_dec_heap ( lbm_value p )

inlinestatic

◆ lbm_dec_i()

static lbm_int lbm_dec_i ( lbm_value x )

inlinestatic

◆ lbm_dec_i32()

static int32_t lbm_dec_i32 ( lbm_value x )

inlinestatic

◆ lbm_dec_i64()

int64_t lbm_dec_i64 ( lbm_value x )

extern

Decode an lbm_value representing a 64 bit integer.

Parameters

x	Value to decode.

Returns: decoded int64_t.

◆ lbm_dec_lisp_array_r()

lbm_array_header_t * lbm_dec_lisp_array_r ( lbm_value val )

Decode a readable lisp array, if the argument is not an array the result is NULL

Parameters

val	value to decode.

Returns: array pointer or NULL.

◆ lbm_dec_lisp_array_rw()

lbm_array_header_t * lbm_dec_lisp_array_rw ( lbm_value val )

Decode an a read/write lisp array, if the argument is not an array the result is NULL

Parameters

val	value to decode.

Returns: array pointer or NULL.

◆ lbm_dec_ptr()

static lbm_uint lbm_dec_ptr ( lbm_value p )

inlinestatic

◆ lbm_dec_raw()

lbm_uint lbm_dec_raw ( lbm_value v )

◆ lbm_dec_str()

char * lbm_dec_str ( lbm_value val )

Decode an lbm_value representing a string into a C string

Parameters

val Value

Returns: allocated list or error symbol

◆ lbm_dec_sym()

static lbm_uint lbm_dec_sym ( lbm_value x )

inlinestatic

◆ lbm_dec_u()

static lbm_uint lbm_dec_u ( lbm_value x )

inlinestatic

◆ lbm_dec_u32()

static uint32_t lbm_dec_u32 ( lbm_value x )

inlinestatic

◆ lbm_dec_u64()

uint64_t lbm_dec_u64 ( lbm_value x )

extern

Decode an lbm_value representing a 64 bit unsigned integer.

Parameters

x	Value to decode.

Returns: decoded uint64_t.

◆ lbm_enc_char()

static lbm_value lbm_enc_char ( uint8_t x )

inlinestatic

◆ lbm_enc_cons_ptr()

static lbm_value lbm_enc_cons_ptr ( lbm_uint x )

inlinestatic

◆ lbm_enc_double()

lbm_value lbm_enc_double ( double x )

extern

Encode a double into an lbm_value.

Parameters

x	double to encode.

Returns: result encoded value.

◆ lbm_enc_float()

lbm_value lbm_enc_float ( float x )

extern

Encode a float into an lbm_value.

Parameters

x	float value to encode.

Returns: result encoded value.

◆ lbm_enc_i()

static lbm_value lbm_enc_i ( lbm_int x )

inlinestatic

◆ lbm_enc_i32()

lbm_value lbm_enc_i32 ( int32_t x )

extern

Encode 32 bit integer into an lbm_value.

Parameters

x	Value to encode.

Returns: result encoded value.

◆ lbm_enc_i64()

lbm_value lbm_enc_i64 ( int64_t x )

extern

Encode a 64 bit integer into an lbm_value.

Parameters

x	64 bit integer to encode.

Returns: result encoded value.

◆ lbm_enc_sym()

static lbm_value lbm_enc_sym ( lbm_uint s )

inlinestatic

◆ lbm_enc_u()

static lbm_value lbm_enc_u ( lbm_uint x )

inlinestatic

◆ lbm_enc_u32()

lbm_value lbm_enc_u32 ( uint32_t x )

extern

Encode 32 bit unsigned integer into an lbm_value.

Parameters

x	Value to encode.

Returns: result encoded value.

◆ lbm_enc_u64()

lbm_value lbm_enc_u64 ( uint64_t x )

extern

Encode a 64 bit unsigned integer into an lbm_value.

Parameters

x	64 bit unsigned integer to encode.

Returns: result encoded value.

◆ lbm_flash_memory_usage()

lbm_uint lbm_flash_memory_usage ( void )

◆ lbm_gc_lock()

void lbm_gc_lock ( void )

Lock GC mutex Locks a mutex during GC marking when using the pointer reversal algorithm. Does nothing when using stack based GC mark.

◆ lbm_gc_mark_aux()

void lbm_gc_mark_aux	(	lbm_uint *	data,
		lbm_uint	n
	)

Performs lbm_gc_mark_phase on all the values of an array. This function is similar to lbm_gc_mark_roots but performs extra checks to not traverse into non-standard values. TODO: Check if this function is really needed.

Parameters

data	Array of roots to traverse from.
n	Number of elements in roots-array.

◆ lbm_gc_mark_env()

void lbm_gc_mark_env ( lbm_value env )

Mark all heap cells reachable from an environment.

Parameters

environment.

◆ lbm_gc_mark_phase()

void lbm_gc_mark_phase ( lbm_value root )

Mark heap cells reachable from the lbm_value v.

Parameters

root

◆ lbm_gc_mark_roots()

void lbm_gc_mark_roots	(	lbm_uint *	roots,
		lbm_uint	num_roots
	)

Performs lbm_gc_mark_phase on all the values in the roots array.

Parameters

roots	pointer to array of roots.
num_roots	size of array of roots.

◆ lbm_gc_state_inc()

void lbm_gc_state_inc ( void )

Increment the counter that is counting the number of times GC ran

◆ lbm_gc_sweep_phase()

int lbm_gc_sweep_phase ( void )

Sweep up all non marked heap cells and place them on the free list.

Returns: 1

◆ lbm_gc_unlock()

void lbm_gc_unlock ( void )

◆ lbm_get_gc_stack_max()

lbm_uint lbm_get_gc_stack_max ( void )

Get the maximum stack level of the GC stack

Returns: maximum value the gc stack sp reached so far.

◆ lbm_get_gc_stack_size()

lbm_uint lbm_get_gc_stack_size ( void )

Get the size of the GC stack.

Returns: the size of the gc stack.

◆ lbm_get_heap_state()

void lbm_get_heap_state ( lbm_heap_state_t * res )

Get a copy of the heap statistics structure.

Parameters

A	pointer to an lbm_heap_state_t to populate with the current statistics.

◆ lbm_heap_allocate_array()

int lbm_heap_allocate_array	(	lbm_value *	res,
		lbm_uint	size
	)

Allocate an bytearray in symbols and arrays memory (lispbm_memory.h) and create a heap cell that refers to this bytearray.

Parameters

res	The resulting lbm_value is returned through this argument.
size	Array size in number of 32 bit words.

Returns: 1 for success of 0 for failure.

◆ lbm_heap_allocate_cell()

lbm_value lbm_heap_allocate_cell	(	lbm_type	ptr_type,
		lbm_value	car,
		lbm_value	cdr
	)

Allocate an lbm_cons_t cell from the heap.

Parameters

type	A type that can be encoded onto the cell (most often LBM_PTR_TYPE_CONS).
car	Value to write into car position of allocated cell.
cdr	Value to write into cdr position of allocated cell.

Returns: a heap cell on success and Memory_error on failure.

◆ lbm_heap_allocate_lisp_array()

int lbm_heap_allocate_lisp_array	(	lbm_value *	res,
		lbm_uint	size
	)

Allocate an array in symbols and arrays memory (lispbm_memory.h) and create a heap cell that refers to this array.

Parameters

res	The resulting lbm_value is returned through this argument.
size	Array size in number of 32 bit words.

Returns: 1 for success of 0 for failure.

◆ lbm_heap_allocate_list()

lbm_value lbm_heap_allocate_list ( lbm_uint n )

Allocate a list of n heap-cells.

Parameters

n	The number of heap-cells to allocate.

Returns: A list of heap-cells of Memory error if unable to allocate.

◆ lbm_heap_allocate_list_init()

lbm_value lbm_heap_allocate_list_init	(	unsigned int	n,
			...
	)

Allocate a list of n heap-cells and initialize the values.

Parameters

n	The length of list to allocate.
...	The values to initialize the list with.

Returns: allocated list or error symbol.

◆ lbm_heap_allocate_list_init_va()

lbm_value lbm_heap_allocate_list_init_va	(	unsigned int	n,
		va_list	valist
	)

Allocate a list of n heap-cells and initialize the values. \pram ls The result list is passed through this ptr.

Parameters

n	The length of list to allocate.
valist	The values in a va_list to initialize the list with.

Returns: True of False depending on success of allocation.

◆ lbm_heap_array_get_data_ro()

const uint8_t * lbm_heap_array_get_data_ro ( lbm_value arr )

Get a pointer to the data of an array for read only purposes.

Parameters

arr	lbm_value array to get pointer from.

Returns: NULL or valid pointer.

◆ lbm_heap_array_get_data_rw()

uint8_t * lbm_heap_array_get_data_rw ( lbm_value arr )

Get a pointer to the data of an array for read/write purposes.

Parameters

arr	lbm_value array to get pointer from.

Returns: NULL or valid pointer.

◆ lbm_heap_array_get_size()

lbm_int lbm_heap_array_get_size ( lbm_value arr )

Get the size of an array value.

Parameters

arr	lbm_value array to get size of.

Returns: -1 for failure or length of array.

◆ lbm_heap_array_valid()

static bool lbm_heap_array_valid ( lbm_value arr )

inlinestatic

◆ lbm_heap_explicit_free_array()

int lbm_heap_explicit_free_array ( lbm_value arr )

Explicitly free an array. This function needs to be used with care and knowledge.

Parameters

arr	Array value.

◆ lbm_heap_init()

int lbm_heap_init	(	lbm_cons_t *	addr,
		lbm_uint	num_cells,
		lbm_uint	gc_stack_size
	)

Initialize heap storage.

Parameters

addr	Pointer to an array of lbm_cons_t elements. This array must at least be aligned 4.
num_cells	Number of lbm_cons_t elements in the array.
gc_stack_size	Size of the gc_stack in number of words.

Returns: 1 on success or 0 for failure.

◆ lbm_heap_new_freelist_length()

void lbm_heap_new_freelist_length ( void )

Add a new free_list length to the heap_stats. Calculates a new freelist length and updates the GC statistics.

◆ lbm_heap_new_gc_time()

void lbm_heap_new_gc_time ( lbm_uint dur )

Add GC time statistics to heap_stats

Parameters

dur	Duration as reported by the timestamp callback.

◆ lbm_heap_num_allocated()

lbm_uint lbm_heap_num_allocated ( void )

Check how many lbm_cons_t cells are allocated.

Returns: Number of lbm_cons_t cells that are currently allocated.

◆ lbm_heap_num_free()

static lbm_uint lbm_heap_num_free ( void )

inlinestatic

Check how many lbm_cons_t cells are on the free-list

Returns: Number of free lbm_cons_t cells.

◆ lbm_heap_size()

lbm_uint lbm_heap_size ( void )

Size of the heap in number of lbm_cons_t cells.

Returns: Size of the heap in number of lbm_cons_t cells.

◆ lbm_heap_size_bytes()

lbm_uint lbm_heap_size_bytes ( void )

Size of the heap in bytes.

Returns: Size of heap in bytes.

◆ lbm_index_list()

lbm_value lbm_index_list	(	lbm_value	l,
		int32_t	n
	)

Index into a list.

Parameters

l	List to index into.
n	Position to read out of the list.

Returns: Value at position n of l or nil if out of bounds.

◆ lbm_is_array_r()

static bool lbm_is_array_r ( lbm_value x )

inlinestatic

Check if value is an array that can be READ

Parameters

x	Value to check.

Returns: true if x represents a readable array and false otherwise.

◆ lbm_is_array_rw()

static bool lbm_is_array_rw ( lbm_value x )

inlinestatic

◆ lbm_is_channel()

static bool lbm_is_channel ( lbm_value x )

inlinestatic

◆ lbm_is_char()

static bool lbm_is_char ( lbm_value x )

inlinestatic

◆ lbm_is_closure()

static bool lbm_is_closure ( lbm_value exp )

inlinestatic

◆ lbm_is_comma_qualified_symbol()

static bool lbm_is_comma_qualified_symbol ( lbm_value exp )

inlinestatic

◆ lbm_is_cons()

static bool lbm_is_cons ( lbm_value x )

inlinestatic

Check if a value is a Readable cons cell

Parameters

x	Value to check

Returns: true if x is a readable cons cell, false otherwise.

◆ lbm_is_cons_rw()

static bool lbm_is_cons_rw ( lbm_value x )

inlinestatic

Check if a value is a Read/Writeable cons cell

Parameters

x	Value to check

Returns: true if x is a Read/Writeable cons cell, false otherwise.

◆ lbm_is_constant()

static bool lbm_is_constant ( lbm_value x )

inlinestatic

◆ lbm_is_continuation()

static bool lbm_is_continuation ( lbm_value exp )

inlinestatic

◆ lbm_is_error()

static bool lbm_is_error ( lbm_value v )

inlinestatic

◆ lbm_is_lisp_array_r()

static bool lbm_is_lisp_array_r ( lbm_value x )

inlinestatic

◆ lbm_is_lisp_array_rw()

static bool lbm_is_lisp_array_rw ( lbm_value x )

inlinestatic

◆ lbm_is_list()

static bool lbm_is_list ( lbm_value x )

inlinestatic

◆ lbm_is_list_rw()

static bool lbm_is_list_rw ( lbm_value x )

inlinestatic

◆ lbm_is_macro()

static bool lbm_is_macro ( lbm_value exp )

inlinestatic

◆ lbm_is_match_binder()

static bool lbm_is_match_binder ( lbm_value exp )

inlinestatic

◆ lbm_is_number()

static bool lbm_is_number ( lbm_value x )

inlinestatic

Check if a value represents a number

Parameters

x	Value to check.

Returns: true is x represents a number and false otherwise.

◆ lbm_is_ptr()

static bool lbm_is_ptr ( lbm_value x )

inlinestatic

Check if a value is a heap pointer

Parameters

x	Value to check

Returns: true if x is a pointer to a heap cell, false otherwise.

◆ lbm_is_quoted_list()

static bool lbm_is_quoted_list ( lbm_value x )

inlinestatic

◆ lbm_is_special()

static bool lbm_is_special ( lbm_value symrep )

inlinestatic

◆ lbm_is_symbol()

static bool lbm_is_symbol ( lbm_value exp )

inlinestatic

◆ lbm_is_symbol_eval()

static bool lbm_is_symbol_eval ( lbm_value exp )

inlinestatic

◆ lbm_is_symbol_merror()

static bool lbm_is_symbol_merror ( lbm_value exp )

inlinestatic

◆ lbm_is_symbol_nil()

static bool lbm_is_symbol_nil ( lbm_value exp )

inlinestatic

◆ lbm_is_symbol_true()

static bool lbm_is_symbol_true ( lbm_value exp )

inlinestatic

◆ lbm_lift_array()

int lbm_lift_array	(	lbm_value *	value,
		char *	data,
		lbm_uint	num_elt
	)

Convert a C array into an lbm array. If the C array is allocated in LBM MEMORY the lifetime of the array will be managed by GC.

Parameters

res	lbm_value result pointer for storage of the result array.
data	C array.
type	The type tag to assign to the resulting LBM array.
num_elt	Number of elements in the array.

Returns: 1 for success and 0 for failure.

◆ lbm_list_append()

lbm_value lbm_list_append	(	lbm_value	list1,
		lbm_value	list2
	)

A destructive append of two lists

Parameters

list1	A list
list2	A list

Returns: list1 with list2 appended at the end.

◆ lbm_list_copy()

lbm_value lbm_list_copy	(	int *	m,
		lbm_value	list
	)

Copy a list

Warning: This is a dangerous function that should be used carefully. Cyclic structures on the heap may lead to the function not terminating.

Parameters

m	Number of elements to copy or -1 for all. If 1, m will be updated with the length of the list
list	A list.

Returns: Reversed list or enc_sym(SYM_MERROR) if heap is full.

◆ lbm_list_destructive_reverse()

lbm_value lbm_list_destructive_reverse ( lbm_value list )

Reverse a proper list destroying the original.

Warning: This is a dangerous function that should be used carefully. Cyclic structures on the heap may lead to the function not terminating.

Parameters

list A list

Returns: The list reversed

◆ lbm_list_drop()

lbm_value lbm_list_drop	(	unsigned int	n,
		lbm_value	ls
	)

Drop values from the head of a list.

Parameters

n	Number of values to drop.
ls	List to drop values from.

Returns: The list with the n first elements removed.

◆ lbm_list_length()

lbm_uint lbm_list_length ( lbm_value c )

Calculate the length of a proper list

Warning: This is a dangerous function that should be used carefully. Cyclic structures on the heap may lead to the function not terminating.

Parameters

c A list

Returns: The length of the list. Unless the value is a cyclic structure on the heap, this function will terminate.

◆ lbm_list_length_pred()

unsigned int lbm_list_length_pred	(	lbm_value	c,
		bool *	pres,
		bool(*)(lbm_value)	pred
	)

Calculate the length of a proper list and evaluate a predicate for each element.

Warning: This is a dangerous function that should be used carefully. Cyclic structures on the heap may lead to the function not terminating.

Parameters

c	A list
pres	Boolean result of predicate, false if predicate is false for any of the elements in the list, otherwise true.
pred	Predicate to evaluate for each element of the list.

◆ lbm_list_reverse()

lbm_value lbm_list_reverse ( lbm_value list )

Reverse a proper list

Warning: This is a dangerous function that should be used carefully. Cyclic structures on the heap may lead to the function not terminating.

Parameters

list A list

Returns: The list reversed or enc_sym(SYM_MERROR) if heap is full.

◆ lbm_nil_freelist()

void lbm_nil_freelist ( void )

Set the freelist to NIL. Means that no memory will be available until after a garbage collection.

◆ lbm_ref_cell()

static lbm_cons_t * lbm_ref_cell ( lbm_value addr )

inlinestatic

◆ lbm_set_car()

int lbm_set_car	(	lbm_value	c,
		lbm_value	v
	)

Update the value stored in the car field of a heap cell.

Parameters

c	Value referring to a heap cell.
v	Value to replace the car field with.

Returns: 1 on success and 0 if the c value does not refer to a heap cell.

◆ lbm_set_car_and_cdr()

int lbm_set_car_and_cdr	(	lbm_value	c,
		lbm_value	car_val,
		lbm_value	cdr_val
	)

Update the value stored in the car and cdr fields of a heap cell.

Parameters

c	Value referring to a heap cell.
car_val	Value to replace the car field with.
cdr_val	Value to replace the cdr field with.

Returns: 1 on success and 0 if the c value does not refer to a heap cell.

◆ lbm_set_cdr()

int lbm_set_cdr	(	lbm_value	c,
		lbm_value	v
	)

Update the value stored in the cdr field of a heap cell.

Parameters

c	Value referring to a heap cell.
v	Value to replace the cdr field with.

Returns: 1 on success and 0 if the c value does not refer to a heap cell.

◆ lbm_set_ptr_type()

static lbm_value lbm_set_ptr_type	(	lbm_value	p,
		lbm_type	t
	)

inlinestatic

◆ lbm_size_of()

lbm_uint lbm_size_of ( lbm_type t )

Query the size in bytes of an lbm_type.

Parameters

t Type

Returns: Size in bytes of type or 0 if the type represents a composite.

◆ lbm_type_of()

static lbm_type lbm_type_of ( lbm_value x )

inlinestatic

Query the type information of a value.

Parameters

x	Value to check the type of.

Returns: The type information.

◆ lbm_type_of_functional()

static lbm_type lbm_type_of_functional ( lbm_value x )

inlinestatic

◆ lbm_write_const_raw()

lbm_flash_status lbm_write_const_raw	(	lbm_uint *	data,
		lbm_uint	n,
		lbm_uint *	res
	)

◆ write_const_car()

lbm_flash_status write_const_car	(	lbm_value	cell,
		lbm_value	val
	)

◆ write_const_cdr()

lbm_flash_status write_const_cdr	(	lbm_value	cell,
		lbm_value	val
	)

Variable Documentation

◆ lbm_heap_state

lbm_heap_state_t lbm_heap_state

extern

◆ lbm_heaps

lbm_cons_t* lbm_heaps[2]

extern

Data Structures

Macros

Typedefs

Enumerations

Functions

Variables

Macro Definition Documentation

◆ ERROR_SYMBOL_MASK

Typedef Documentation

◆ const_heap_write_fun

Enumeration Type Documentation

◆ lbm_flash_status

Function Documentation

◆ lbm_allocate_const_cell()

◆ lbm_allocate_const_raw()

◆ lbm_caar()

◆ lbm_cadr()

◆ lbm_car()

◆ lbm_cddr()

◆ lbm_cdr()

◆ lbm_cons()

◆ lbm_const_heap_init()

◆ lbm_const_write()

◆ lbm_dec_array_r()

◆ lbm_dec_array_rw()

◆ lbm_dec_as_char()

◆ lbm_dec_as_double()

◆ lbm_dec_as_float()

◆ lbm_dec_as_i32()

◆ lbm_dec_as_i64()

◆ lbm_dec_as_int()

◆ lbm_dec_as_u32()

◆ lbm_dec_as_u64()

◆ lbm_dec_as_uint()

◆ lbm_dec_channel()

◆ lbm_dec_char()

◆ lbm_dec_cons_cell_ptr()

◆ lbm_dec_custom()

◆ lbm_dec_double()

◆ lbm_dec_float()

◆ lbm_dec_heap()

◆ lbm_dec_i()

◆ lbm_dec_i32()

◆ lbm_dec_i64()

◆ lbm_dec_lisp_array_r()

◆ lbm_dec_lisp_array_rw()

◆ lbm_dec_ptr()

◆ lbm_dec_raw()

◆ lbm_dec_str()

◆ lbm_dec_sym()

◆ lbm_dec_u()

◆ lbm_dec_u32()

◆ lbm_dec_u64()

◆ lbm_enc_char()

◆ lbm_enc_cons_ptr()

◆ lbm_enc_double()

◆ lbm_enc_float()

◆ lbm_enc_i()

◆ lbm_enc_i32()

◆ lbm_enc_i64()

◆ lbm_enc_sym()

◆ lbm_enc_u()

◆ lbm_enc_u32()

◆ lbm_enc_u64()

◆ lbm_flash_memory_usage()

◆ lbm_gc_lock()

◆ lbm_gc_mark_aux()

◆ lbm_gc_mark_env()

◆ lbm_gc_mark_phase()

◆ lbm_gc_mark_roots()

◆ lbm_gc_state_inc()

◆ lbm_gc_sweep_phase()

◆ lbm_gc_unlock()

◆ lbm_get_gc_stack_max()

◆ lbm_get_gc_stack_size()

◆ lbm_get_heap_state()

◆ lbm_heap_allocate_array()

◆ lbm_heap_allocate_cell()

◆ lbm_heap_allocate_lisp_array()

◆ lbm_heap_allocate_list()
